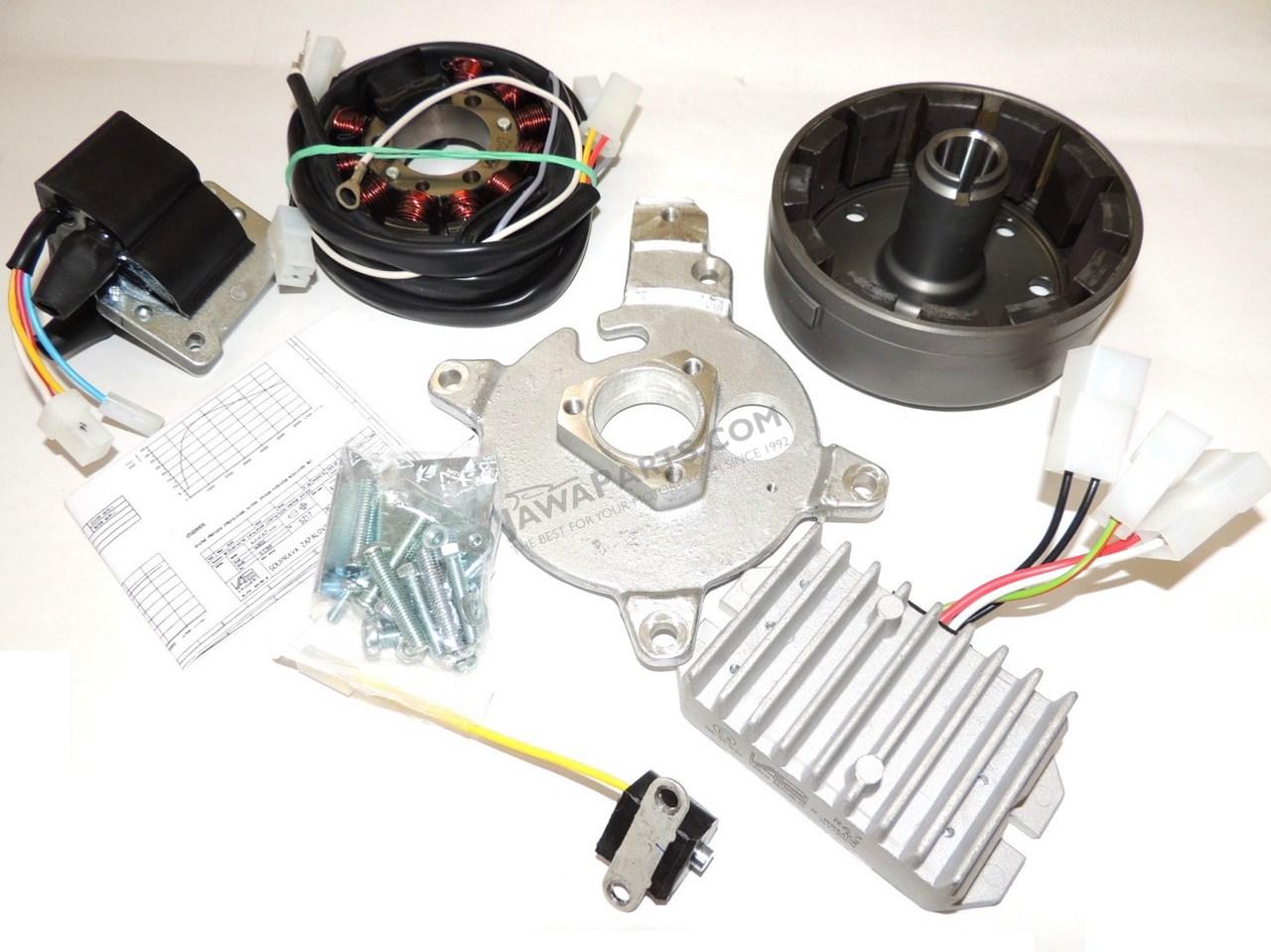

Contactless ignition VAPE (SZ17) 2-cylinders / 12V - JAWA 350 638-640

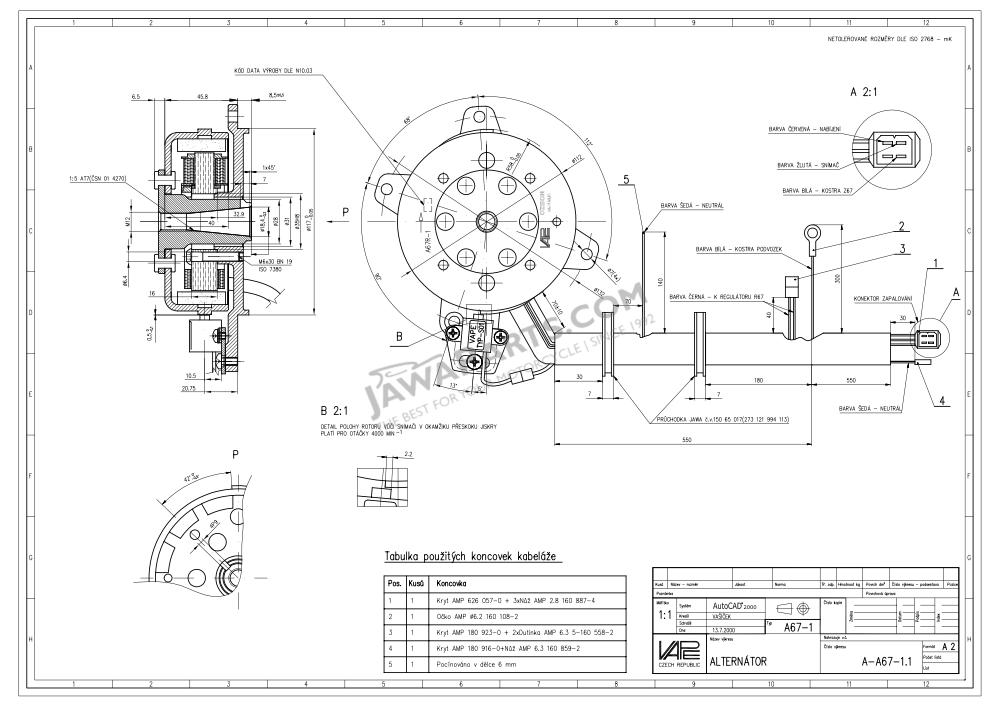

Note.: Connection scheme is available only in czech languague.
Can be used for: | |
JAWA | 350 type 638 TS |
JAWA | 350 type 639 TS |
JAWA | 350 type 640 |
JAWA | 350 type 640 Tramp |
JAWA | 350 type 693 (640 Chopper) |
This set is designed to replace 12V three-phase alternator or 12V single-phase alternator. Replaces completely the source and ignition system, including the alternator.
Usage for Jawa 350 type 632, 638, 639, 640 and possibly other less advanced types that are equipped with some of the above mentioned alternators. Beware of engines equipped with a Ducati ignition, it is not possible to use this set due to other installation (large crankshaft diameter).
In the case of the 632 engine, which was produced in two periods, this set can be used for engines manufactured around 1990.
The warranty does not apply to defects caused by unprofessional commissioning, improper installation, incorrect handling of the goods, improper maintenance or improper handling.
The requirement to claim the claim procedure is to provide a proof of professional assembly.
This product is not eligible for a registered discount.
