Contactless ignition VAPE (SZ13-2) 2-Cylinders / 12V - JAWA, ČZ
STOCK
Full specifications
Contactless ignition VAPE (SZ13-2) 2-Cylinders / 12V - JAWA, ČZ
Note.: Connection scheme is available only in czech languague.
| Can be used for: | |
| ČZ | ČZ 250 type 471 - two cylinders |
| ČZ | ČZ 350 type 472 - two cylinders |
| JAWA | 250 Bizon type 623 |
| JAWA | 350 Bizon type 633 |
| JAWA | 350 type 18 (Pérák) |
| JAWA | 350 type 354 (Kývačka) |
| JAWA | 350 type 360 (Panelka) |
| JAWA | 350 type 361 (Sport) |
| JAWA | 350 type 362 (Californian) |
| JAWA | 350 type 634 |
12V source and ignition set, for 2-cylinders, two-stroke, right-handed motors.
150W power.
Output on 2 spark plug.
Usage for Jawa 250/623 Bizon, Jawa 350/633 Bizon, Jawa 350 Pérák, Jawa 350/354, 360, 632 (kromě roku výroby 1989/90), 634, Jawa 350 Californian, ČZ250/471

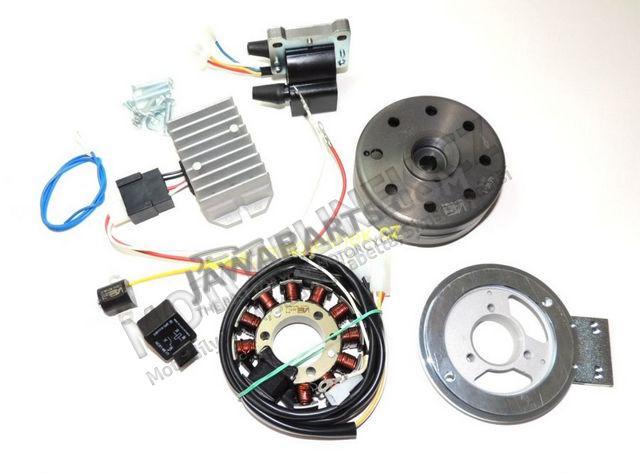

Set includes:
A-A69S-1 - Stator
A-A69R-1 - Rotor
A-S01T - Sensor
A-R67 - Controller
A-Z67 - Ignition Coil
A-A69N-2 - Stator carrier
64066015 - Coil holder
The warranty does not apply to defects caused by unprofessional commissioning, improper installation, incorrect handling of the goods, improper maintenance or improper handling.
The requirement to claim the claim procedure is to provide a proof of professional assembly.
This product is not eligible for a registered discount.
Connection scheme
