Carburetor slide valve set, professional - Stadion S22, S23, JAWA 50 typ 05

Full specifications

Carburetor slide valve set, professional - Stadion S22, S23, JAWA 50 typ 05

Disclaimer: The kit is not suitable for JAWA 50 Pionýr motorcycles with newer types of carburetors due to a different needle.

Can be use for:

• Stadion S22
• Stadion S23
• JAWA 50 type 05

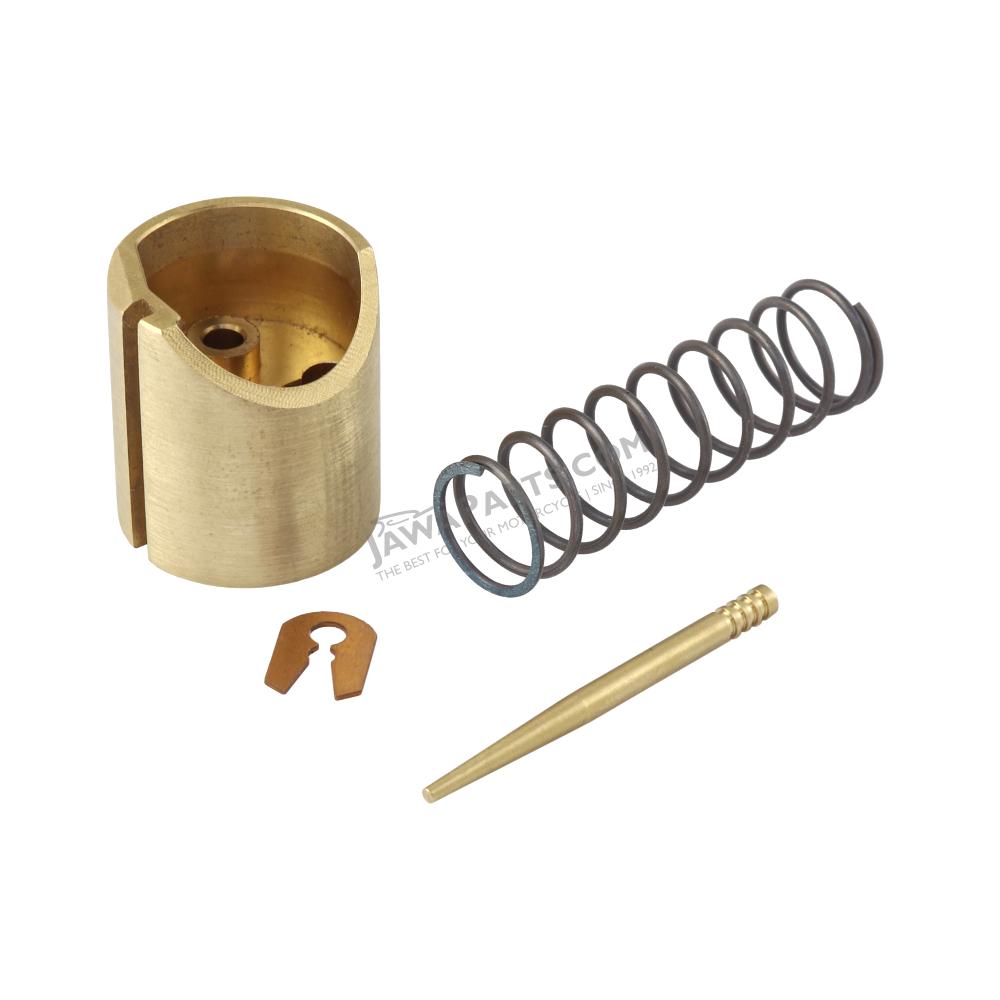

This set for Stadion S22 and S23 mopeds and Jawa 50 Pionýr 05 motorcycles (1st type with 2915 PS carburetor) contains a needle, a fuse, a spring and above all a slide - a slide, which solves a long-standing problem. Replicas of slides from Taiwan copy the product including the groove, which was created on the original carburetors by gradual tweaking and driving, and which complicates the idle adjustment, sometimes making the carburetors practically unusable. Other replicas of slides have a simplified design and a deviated hole for the needle, which causes other problems.

The new slide made of high-quality brass does not have this undesirable groove, but now includes a small ramp and a reinforced area for smooth idle adjustment. It also does not lack all the necessary elements, including a recess for placing the needle fuse and protrusions for securing the spring. Thanks to high manufacturing precision, it seals perfectly in the chamber. The needle, fuse and spring are made of the same materials as the original. For proper functionality, always replace all components, do not combine with components from other manufacturers.

All components are manufactured in the Czech Republic.
